JAN(UPC)：0197105441156
型番：PRO WS WRX90E-SAGE SE

・ 超高速接続: 7 つの PCIe® 5.0 x16 スロット、デュアル 10 Gb LAN ポート、4 つの M.2 スロット、2 つの背面 USB4® 40Gbps Type-C® および SlimSAS NVMe サポート
・ CPU およびメモリのオーバークロック：最大 2 TB ECC R-DIMM DDR5 メモリ モジュール (1DPC) をサポートします
・ 堅牢な電源および熱設計：CPU 用の 2 つの 8 ピン電源コネクタを備えた 32+3+3+3 電源ステージ、大規模な VRM 冷却、アクティブ ファンを備えたチップセットと M.2 ヒートシンク、および M.2 サーマル パッド
・ PCIe Q-release Slim：PCIe ラッチを押すのではなく、グラフィックス カードを直接引き上げて取り外します
・ サーバーグレードのIPMIリモート管理とオンボードBMC：オンボードAST2600 BMCコントローラーにリンクする専用LANポートを備えたハードウェアおよびソフトウェアレベル、さらにリアルタイムの監視と管理のためのASUS Control Center Expressソフトウェア
・ 信頼できる安定性：最新テクノロジーとの広範な互換性、広範な QVL リストが検証され、24 時間 365 日の動作がテストされています

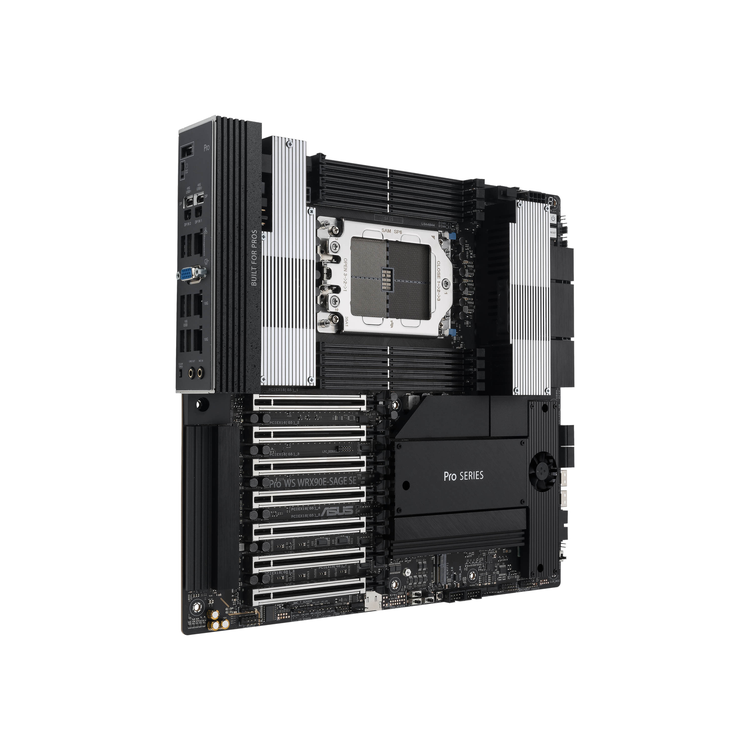

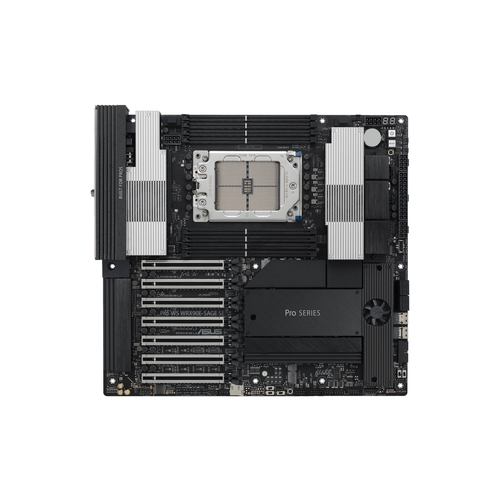

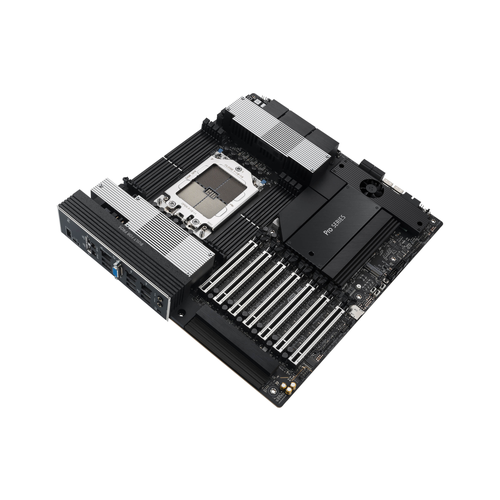

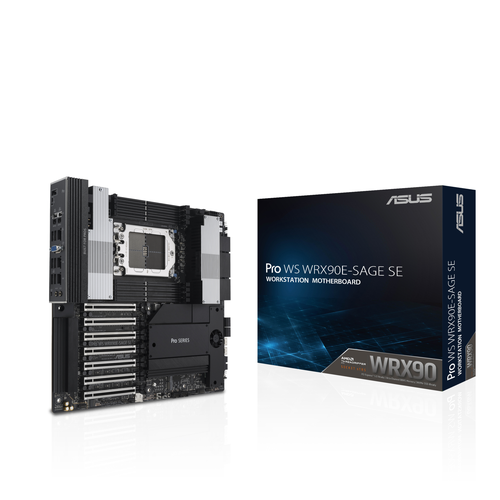

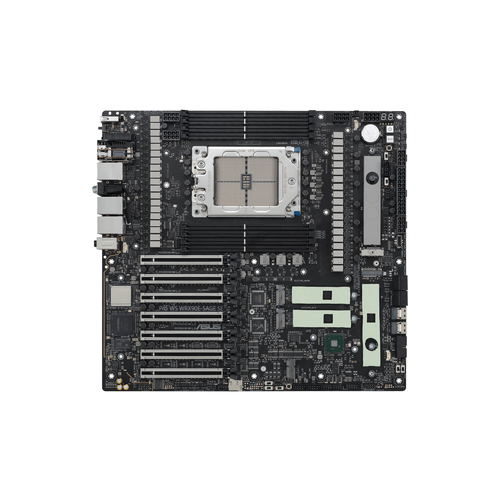

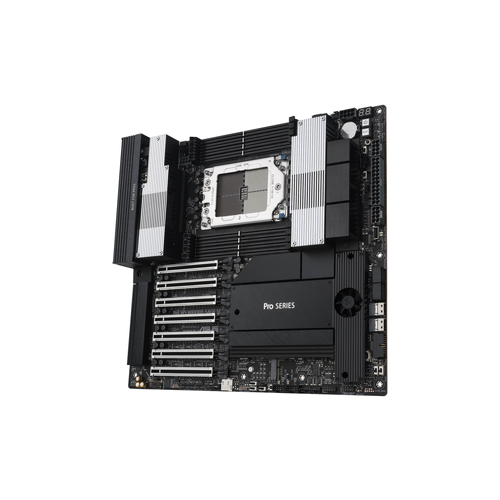

Pro WS WRX90E-SAGE SE
Note: The specifications are subject to change without notice.
CPU	AMD Socket sTR5 WRX90 for Ryzen™ Threadripper™ PRO 7000 WX-Series Processors*
	* Refer to www.asus.com for CPU support list.
Chipset	AMD WRX90 Chipset
Memory	8 x DIMM slots, DDR5, ECC Registered Memory*
	8-Channel Memory Architecture
	Supports AMD Extended Profiles for Overclocking (EXPO™)
	* Supported memory types, data rate (speed), and number of DRAM modules vary depending on the CPU and memory configuration, for more information please refer to CPU/Memory Support list under the Support tab of product information site or visit https://www.asus.com/support/.
Graphics	1 x VGA port from AST2600
	2 x USB 40Gbps (USB4®) ports support USB Type-C®display outputs*
	* Supports max. 8K@60Hz as specified in DisplayPort 1.4.
	** Output at USB4® Type-C® 40G USB 1 or USB4® Type-C® 40G USB 2 ports, each requires a Mini DisplayPort IN to DisplayPort adapter cable. For more information on display connection and video output configuration using the Mini DisplayPort IN ports, please refer to the user manual.
Expansion Slots	AMD Ryzen™ Threadripper™ PRO 7000 WX-Series Processors*
	6 x PCIe 5.0 x16 slots
	1 x PCIe 5.0 x16 slot (x8 mode)
	* Please check the PCIe bifurcation table on the support site (https://www.asus.com/support/FAQ/1037507/).
	- To ensure compatibility of the device installed, please refer to https://www.asus.com/support/ for the list of supported peripherals.
Storage	Supports 4 x M.2 slots, 2 x SlimSAS ports and 4 x SATA 6Gb/s ports*
	AMD Ryzen™ Threadripper™ PRO 7000 WX-Series Processors*
	M.2_1 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 5.0 x4 mode)
	M.2_2 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 5.0 x4 mode)
	M.2_3 slot (Key M), type 2242/2260/2280 (supports PCIe 5.0 x4 mode)
	M.2_4 slot (Key M), type 2242/2260/2280 (supports PCIe 5.0 x4 mode)
	AMD WRX90 Chipset
	SlimSAS_1 slot supports PCIe 4.0 x4 mode NVMe device
	SlimSAS_2 slot supports PCIe 4.0 x4 mode NVMe device
	4 x SATA 6Gb/s ports
	* AMD RAIDXpert2 Technology supports both PCIe RAID 0/1/5/10 and SATA RAID 0/1/5/10.
Ethernet	1 x Realtek 1Gb Ethernet (Dedicated management LAN for AST2600)
	1 x Intel® dual 10Gb Ethernet
	ASUS LANGuard
Wireless & Bluetooth®	M.2 slot only (Key E, PCIe)* * Wi-Fi module is sold separately.
USB	Rear USB (Total 9 ports)
	2 x USB 40Gbps (USB4®) with ASMedia ASM4242 controller ports (2 x USB Type-C®)
	6 x USB 10Gbps ports (6 x Type-A)
	1 x USB 2.0 port (1 x Type-A)
	Front USB (Total 7 ports)
	1 x USB 20Gbps connector (supports USB Type-C®)
	1 x USB 5Gbps header supports 2 additional USB 5Gbps ports
	2 x USB 2.0 headers support 4 additional USB 2.0 ports
Audio	Realtek ALC1220P Surround Sound High Definition Audio CODEC* - Impedance sense for front and rear headphone outputs - Internal audio Amplifier to enhance the highest quality sound for headphone and speakers - Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking - High quality 120 dB SNR stereo playback output and 113 dB SNR recording input (Line-in) - Supports up to 32-Bit/192 kHz playback
	Audio Features
	- Premium audio capacitors
	- Dedicated audio PCB layers
	- Unique de-pop circuit
	* A chassis with an HD audio module in the front panel is required to support 5.1 Surround Sound audio output.
	* This motherboard will only support up to 5.1 Surround Sound due to the number of audio ports available on the motherboard.

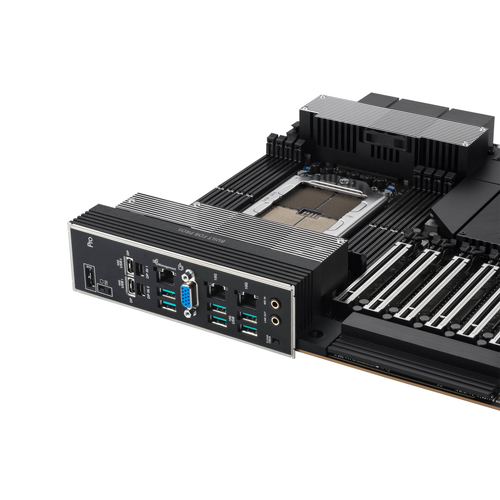

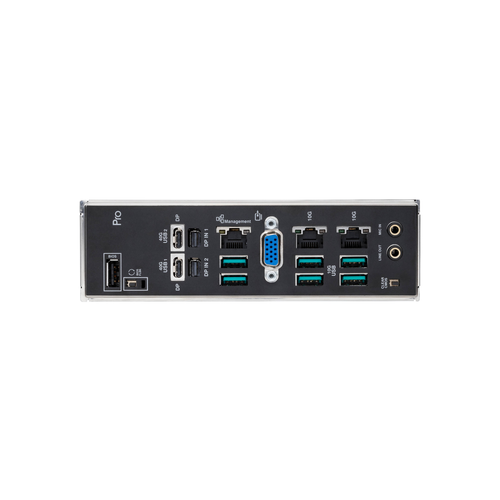

Back Panel I/O Ports	2 x USB 40Gbps (USB4®) with ASMedia ASM4242 controller ports (2 x USB Type-C®)
	6 x USB 10Gbps ports (6 x Type-A)
	1 x USB 2.0 port (1 x Type-A)
	1 x VGA port
	2 x mini DisplayPort IN
	1 x Intel® dual 10Gb Ethernet ports
	1 x Realtek 1Gb Ethernet port
	2x Audio jacks
	1 x BIOS FlashBack™ button
	1 x Clear CMOS button
Internal I/O Connectors	Fan and Cooling Related
	1 x 4-pin CPU Fan header
	1 x 4-pin CPU OPT Fan header
	5 x 4-pin Chassis Fan headers
	1 x W_PUMP+ header
	2 x 4-pin VRM Fan header (with VRM FAN onboard)
	1 x 4-pin M.2 Fan header (with M.2 FAN onboard)
	Power Related
	1 x 24-pin main power connector
	2 x 8-pin +12V power connectors
	2 x 8-pin PCIe to CPU power connectors
	2 x 8-pin PCIe power connectors
	Storage Related
	4 x M.2 slots (Key M)
	2 x SlimSAS connectors
	4 x SATA 6Gb/s ports
	USB
	1 x USB 20Gbps connector supports USB Type-C®
	1 x USB 5Gbps header supports 2 additional USB 5Gbps ports
	2 x USB 2.0 headers support 4 additional USB 2.0 ports
	Miscellaneous
	1 x Chassis intrusion header
	1 x COM port header
	1 x FlexKey button
	1 x Front panel audio header (F_AUDIO)
	1 x LN2 mode jumper
	1 x M.2 slot (Key E)
	7 x ProbeIt measurement points
	1 x ReTry button
	1 x RSVD switch
	1 x Slow mode switch
	1 x Safe boot button
	1 x SPI TPM header (14-1 pin)
	1 x Start button
	1 x 10-1 pin system panel header
	1 x Thermal sensor header
Special Features	Extreme OC Kit
	- FlexKey button
	- LN2 mode
	- ReTry button
	- Safe boot button
	- Start button
	Extreme Engine Digi+
	- 10K Black metallic capacitors
	- MicroFine alloy choke
	ASUS 5X PROTECTION III
	- DIGI+ VRM (- Digital power design with SPS)
	- ESD Guards
	- LANGuard
	- Overvoltage protection
	- SafeSlot
	- Stainless-steel back I/O
	ASUS Q-Design
	- M.2 Q-Latch
	- Q-Release Slim (with PCIe SafeSlot)
	- Q-Code
	- Q-Connector
	- Q-DIMM
	- Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow green])
	- Q-Slot
	ASUS Thermal Solution
	- M.2 heatsink backplate and onboard thermal pads
	- M.2 heatsink
	- Steel backplate
	- VRM heatsink design with active fans
	ASUS EZ DIY
	- BIOS FlashBack™ button
	- BIOS FlashBack™ LED
	- Clear CMOS button
	- ProCool II
	- Pre-mounted I/O shield
	- SafeSlot
	- SafeDIMM
	Bespoke Motherboard Design & Business Focused Features
	- 24/7 reliability
	- Overcurrent protection
	ASUS Exclusive Software
	Armoury Crate
	- Fan Xpert 4
	ASUS CPU-Z
	Adobe Creative Cloud (Free Trial)
	Norton 360 for Deluxe (60 Days Free Trial)
	WinRAR (40 Days Free Trial)
	UEFI BIOS
	ASUS EZ DIY
	- ASUS CrashFree BIOS 3
	- ASUSTeK. EzFlash Utility
	FlexKey
Remote Management Features	IT Management software supported
	- ASUS Control Center Express(ACCE)
	BMC Related
	1 x BMC switch
	1 x BMC LAN fixed IP switch
	1 x IPMI switch
	1 x Message LED header
	1 x microSD card socket
	2 x LAN LED headers
	1 x Location LED header
	1 x Location button header
	1 x PSU_SMB header
	1 x SMART_PSU switch
	1 x VGA switch
	1 x VGA header
	1 x VPP_I2C header
BIOS	256 Mb Flash ROM, UEFI AMI BIOS(text-based)
Manageability	WOL by PME, PXE (UEFI mode)

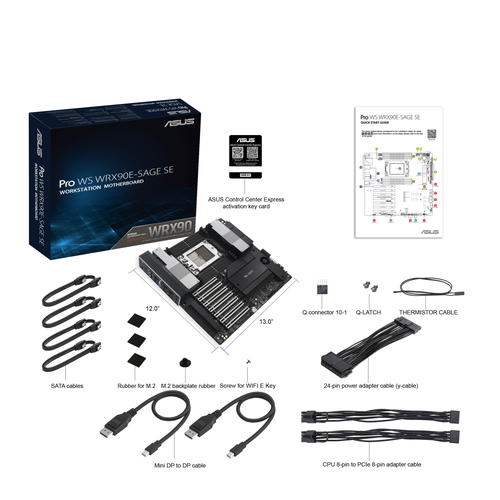

Accessories	Cables
	2 x PCIe 8-pin to CPU power cables
	1 x 24-pin power cable (Y cable)
	2 x Mini DisplayPort cables
	4 x SATA 6Gb/s cables
	1 x Thermistor cable
	Miscellaneous
	1 x Q-connector
	1 x M.2 Q-Latch package
	1 x AMI license sticker
	4 x M.2 rubber packages
	1 x Screw package for M.2 Key E
	Documentation
	1 x ACC Express activation key card
	1 x Quick start guide
Operating System	Windows®11, Windows®10 64-bit
Form Factor	EEB Form Factor
	12 inch x 13 inch (30.5 cm x 33 cm)
